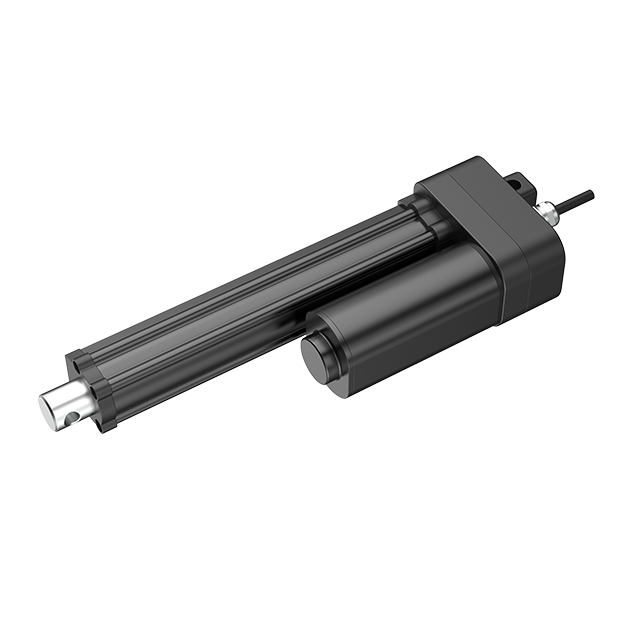

Linear Actuator JC35W5
-
JIECANG
Load in push：3000N, 2000N, 1000N
Load in pull：2000N, 1000N
Color: Black
IP grade: Max. IP67
Stroke length:
3000N：50-250mm
2000N：50-400mm
1000N：50-400mm
Installation dimensions:
L=170(S≤50)
L=S+120（50≤S≤400）
Noise level: ≤55dB, ( environmental noise≤40dB)
Hall sensor : optional
Built-in electrical limit switch.
Weight: About 1.413kg (different stroke length and installation dimensions with different weight )
Static bending moment: lateral load are not allowed.
