Linear Actuator
We manufacture industrial electric linear actuator suitable for various industry applications, with voltage options including 12V, 24V, and 36V, and stroke ranges from 1 inch to 50 inches. Our product range includes high-speed, high-load, and small DC linear actuators with feedback capabilities, providing customized linear actuator solutions for medical, smart home, and industrial applications.Product filter
Heavy Duty ActuatorsVoltage : 24 /29 V
Stroke : 50-300mm
Position FeedbackVoltage: 12 /24/36VMax. load: 1000N
High Speed Actuator
Stroke : 50-600mm
IP grade： IP43
Fast Linear ActuatorVoltage: 24 V/29/36V
Maximum load: 8000N
Heavy Duty ActuatorVoltage : 24 /29VMax. load: 10000N
High SpeedVoltage: 29V
Max. load: 1000N
Industrial WaterproofVoltage: 24VLoad speed(mm/s): 1.5
Actuator With FeedbackVoltage: 12/24 /29V
Limit Switch: electronic
Industrial with FeedbackVoltage: 24 VStroke(mm)：20~300mm
Small Linear ActuatorVoltage: 24/29 V
Stroke: 50-500mm
Small Industrial Linear ActuatorVoltage: 24/29 V
Stroke: 50-400mm
High Speed Actuator
Stroke : 50-250mm
Color: Grey /Black
12v Industrial Linear ActuatorVoltage : 12 V/24/48VStroke : 50-250mm
Industrial with FeedbackVoltage: 24VIP grade: IP66M
Linear Actuator 24vVoltage: 24 /29V
Stroke: 50-400mm
Fast Linear ActuatorVoltage: 24/29 VMax. load: 4000N
Waterproof Linear ActuatorVoltage : 24 VDC
Stroke : 50-200mm
High Load Linear ActuatorVoltage: 24 /29V
Stroke: 50-250mm
Mini Linear ActuatorVoltage : 24 /29 V
Stroke : 50-300mm
Heavy Duty ActuatorMax. load: 12000NStroke:50-400mm
Micro Linear ActuatorVoltage : 24 V
Stroke : 30-300mm
DC Linear ActuatorVoltage: 24VStroke: 50mm
High Speed Actuator
Max. load: 6000NIP grade: Max. lP66
DC Linear ActuatorStroke : 50-250mmColor: Grey
Waterproof ActuatorVoltage:12/ 24 V
Stroke: 50-400mm
Electric Linear ActuatorVoltage: 12 / 24 / 48VMax static load:16KN
Load push(N) : 2000
Load Pull(N): 1500
IP grade: IP20
Load push(N) : 2000
Load Pull(N): 1500
IP grade: IP20
Stroke: 50-300mm
Max. load: 6000NColor:Gray
Voltage : 24 /29V
Stroke : 50-400mm
Color: Gray
Voltage: 29V
Load push：2*4500N
IP grade: IP20
Voltage : 12/24 /29V
Stroke : 50-400mm
Color: Black /Gray
Voltage: 24 V/29V
Max. load: 8000NIP grade：IPX4
Voltage: 24 V/12V
Stroke: 50-400mm
Color: Black
Voltage : 24 /29VStroke : 50-400mmIP grade: Max. IPX6
Voltage : 24 /29V
Stroke : 100-250mm
IP grade: IP43
Voltage : 12/24/29/36/48V
Stroke : 15-400mm
IP grade: IP54
Voltage : 24/29 V
Stroke : 50-400mm
IP grade: IPX4
Voltage : 24/29 V
Stroke : 50-500mm
IP grade: Max. IPX6
Voltage: 24 /29VStroke: 50-400mmIP grade: IPX4
About JIECANG Linear ActuatorsSince 2000, we at JIECANG have focused on intelligent linear motion. Listed on the Shanghai Stock Exchange in 2018, JIECANG leads China’s motion control industry and helped draft national standards for DC electric actuators and height-adjustable desks. Our high-performance electric linear actuators are built for precision, durability and energy efficiency. They carry ISO 9001, UL, CE and RoHS certifications and are easy to install, low-maintenance and adaptable. Guided by our motto “improving people’s lives,” we deliver innovative motion solutions for smarter, healthier living.
What is a Linear Actuator?
A linear actuator is a precision device that converts rotational motion into controlled straight-line push-and-pull movement, replacing the spinning motion of a standard motor with smooth, directional linear travel.
Widely used across global industries, linear actuators deliver accurate, reliable, and fully controllable movement for countless applications. They can be powered by electric, hydraulic, or pneumatic systems, with electric models being the most versatile, clean, and user-friendly option for modern commercial and residential use. Common applications include industrial automation, medical and rehabilitation equipment, height-adjustable desks, solar tracking systems, robotics, and smart home furniture.
At JIECANG, we specialize in industry-leading electric linear actuators, engineered to meet the unique demands of every application we serve.Types of JIECANG Linear ActuatorWe offer a comprehensive range of electric linear actuators, engineered for specific applications and performance requirements. Our core product categories are optimized for global search demand, with full customization available for every model.
Heavy Duty & Industrial Linear Actuators- JC35L11: Our flagship heavy-duty model, max thrust up to 12,000N (1.2 tons), stroke range 50-400mm, built for extreme lifting applications.
- JC35L28: Heavy-duty industrial actuator, 24V/29V DC input, max load 10,000N, optimized for rugged working environments.
- JC35FA2: Industrial electric actuator with static load up to 16KN, designed for long-term continuous operation in automation systems.
- JC35SA5: Industrial waterproof actuator, 24V DC input, industry-leading IP rating, perfect for outdoor and harsh environment use.
Medical & Care Linear Actuators
JC35L18: High-speed medical actuator, max load 8000N, supports 24V/29V/36V DC input, optimized for fast, reliable patient care adjustments.
JC35L30: Heavy-duty medical-specific actuator, 24V/29V DC input, stroke range 50-300mm, built for bariatric care and heavy-duty medical equipment.
JC35D4: Waterproof medical actuator, 24V DC input, high IP rating, engineered for bathroom mobility aids and wet-environment care equipment.
Small & High Speed Linear Actuators
JC35N6 / JC35N8: Micro/miniature linear actuators, optimized for compact spaces, stroke range 30-300mm, ideal for hidden smart home installations.JC35D1 / JC35DN: High-speed electric actuators, stroke range 50-600mm, delivering fast, responsive movement for adjustable furniture and automation.JC35L36: High-speed actuator, 29V DC input, max load 1000N, balancing speed and performance for commercial and residential use.Linear Actuators with Feedback & Smart ControlJC35W8/JC35B8: Integrated position feedback linear actuators, support 12V/24V/36V DC input, compatible with smart home and office control systems for fully automated adjustment.How to Choose the Right Linear Actuator？
- Choosing the right linear actuator depends on your application requirements:
- For heavy lifting → choose high load actuators
- For fast movement → choose high speed models
- For limited space → choose compact actuators
- For outdoor use → choose waterproof models
- For precise control → choose actuators with feedback
- If you are unsure, our engineering team can help you select the best solution.
FAQs
- 1.What is the difference between JIECANG electric linear actuators and hydraulic actuators?Our electric linear actuators are cleaner, more energy-efficient, and far easier to control and maintain compared to hydraulic systems. They eliminate the risk of fluid leaks, require no ongoing fluid maintenance, and offer precise digital control for smart system integration, making them the preferred choice for modern industrial, commercial, and residential applications.
- 2.How do I choose the right stroke length for my application?Your required stroke length is determined by the total linear travel distance needed for your application. We recommend selecting a stroke that matches your required movement, with a small safety buffer to avoid over-travel. Our engineering team can help you calculate the perfect stroke length for your specific use case.
- 3.What IP rating do I need for my linear actuator?For indoor dry environments (office furniture, indoor smart home), IP54 is typically sufficient. For outdoor use, wet environments (bathroom equipment), or industrial applications with dust and moisture exposure, we recommend IP65 or above. Our industrial range offers up to IP66M waterproof grade for the most demanding environments.
- 4.Can JIECANG linear actuators be customized?
Absolutely. We offer full end-to-end customization for all our linear actuators, including stroke length, load capacity, speed, input voltage, IP rating, feedback options, mounting dimensions, and color. Our in-house R&D team works directly with you to create a tailored solution that meets your exact requirements.
Related Articles

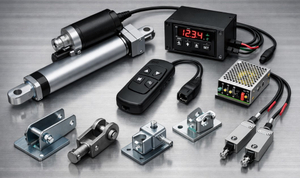

Understanding Linear Actuators: From Working Principles to Selection
2026 02-28The office standing desk you raise every morning, the automatic liftgate on a car, and the smooth motion of a medical CT scanner all rely on the same essential component: the linear actuator. The name may sound highly technical, but the idea is simple.
Read More

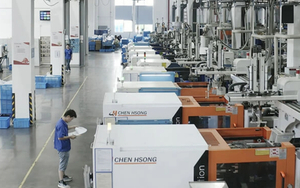

JIECANG Earns Dual National Honors: Innovation & Green Manufacturing
2026 04-17JIECANG Linear Motion has recently been recognized as a "National Intellectual Property Demonstration Enterprise" candidate and a "2025 National Green Factory." Bolstered by a robust IP portfolio (982 patents) and elite research partnerships, the company continues to conquer cutting-edge technologies while integrating eco-friendly practices throughout its product lifecycle. The powerful synergy of technological innovation and sustainable manufacturing further solidifies JIECANG's global leadership in smart office, medical care, and robotics sectors.
Read More

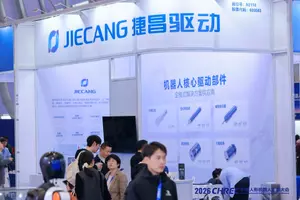

Humanoid Robot Hardware: JIECANG Linear Actuators & Coreless Motor Assemblies at CHREC 2026
2026 04-22Discover how JIECANG solves the power and precision challenges of humanoid robots. At CHREC 2026, we showcased our latest high-thrust JIECANG linear actuators and ultra-compact coreless motor assemblies, engineered for seamless robotic motion from fingertips to torso.
Read More

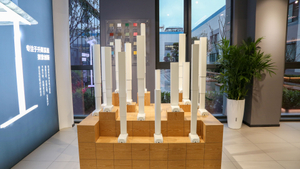

Electric Lifting Columns for Desks Complete Guide
