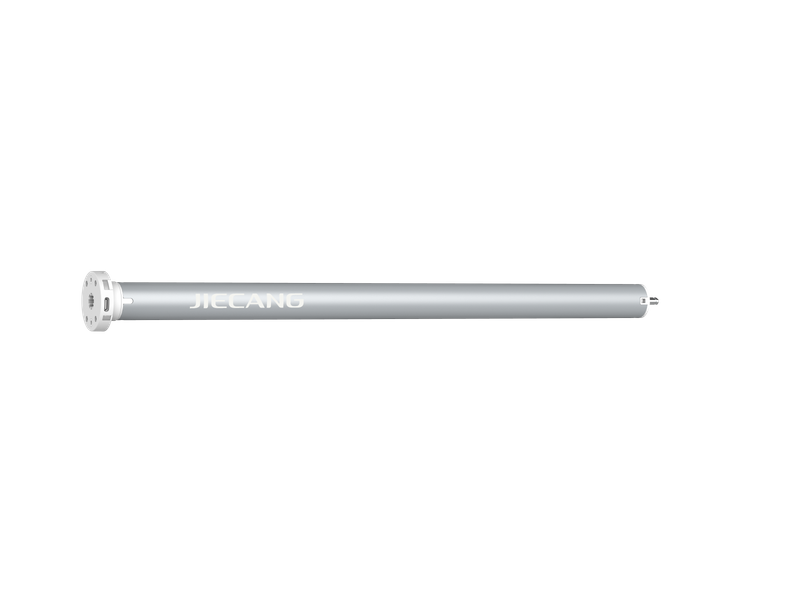

Rechargable Motors-5V

Internal Li-Ion Battery Powered
Size:
Availability:
FEATURES

1. Various torque for widely applicate.

2. Internal rechargeable lithium battery.

3. Smart control with Smart Hub and Mini Bridge.

4. Compatible with leading brands of Home Automation Systems.

5. Low standby power design,would operate 4~6 month when fully charged.

6. Powered by USB charging or solar panel.

7. Built-in RF433.92 wireless receiver,electronic limit.

8. Patented spring arm button design on motor head, good operating feeling.

9. Thinnest motor head design,minimize light transmission gap.

10. Patented silent motor design,running noise <33dB.

11. 3 speeds adjustable.

12. Stall Protection.

13. Easily set up/down limit,and favorite position.

APPLICATION
1

Indoor roller blinds

4

Shangri-La Blinds

9

Roman Blinds

2

Aluminum Venetian blinds

10

Honeycomb blinds

5

Sheer Blinds


TypeRated Torque(N.m)Rated Speed(rpm)Power SupplyRated Power(W)Rated Current(A)Maximum Shade Size*Weight Capacity**Smart Control
JCD15SLEU-03300.325/30/355V/2A USB Charger&Solar Panle50.640"×40" ¦ 1.0m*1.0m4.5 lb ¦ 2 kgMini Bridge/Hub
JCD15SLEU-0330-B/Z0.325/30/355V/2A USB Charger&Solar Panle50.640"×40" ¦ 1.0m*1.0m4.5 lb ¦ 2 kgPlug-in Bluetooth or Zigbee


*The Maximum Shade Size measures are provided as guidelines and should only be used for evaluating your specific application.

**The Weight Capacity of a motor is calculated under optimal circumstances. Actual results may vary.



TypeRated Torque(N.m)Rated Speed(rpm)Power SupplyRated Power(W)Rated Current(A)Maximum Shade Size*  Weight Capacity**Smart Control
JCD25SLEU-11301.120/25/305V/2A USB Charger&Solar Panle9.6/120.8/1.084"×84" ¦ 2.1m*2.1m9 lb ¦ 4 kgMini Bridge/Hub
JCD25SLEU-15201.520/25/285V/2A USB Charger&Solar Panle121.184"×122" ¦ 2.1m*3.1m15 lb ¦ 7 kgMini Bridge/Hub
JCD25SLEU-20202.020/24/285V/2A USB Charger&Solar Panle181.684"×160" ¦ 2.1m*4.1m20 lb ¦ 9 kgMini Bridge/Hub
JCD25SLEU-1130-B/Z1.120/25/305V/2A USB Charger&Solar Panle121.084"×84" ¦ 2.1m*2.1m9 lb ¦ 4 kgPlug-in Bluetooth or Zigbee
JCD25SLEU-1520-B/Z1.520/25/285V/2A USB Charger&Solar Panle121.184"×122" ¦ 2.1m*3.1m15 lb ¦ 7 kgPlug-in Bluetooth or Zigbee
JCD25SLEU-2020-B/Z2.020/24/285V/2A USB Charger&Solar Panle181.684"×160" ¦ 2.1m*4.1m20 lb ¦ 9 kgPlug-in Bluetooth or Zigbee
JCD15SLEU-03300.325/30/355V/2A USB Charger&Solar Panle50.640"×40" ¦ 1.0m*1.0m4.5 lb ¦ 2 kgMini Bridge/Hub
JCD15SLEU-0330-B/Z0.325/30/355V/2A USB Charger&Solar Panle50.640"×40" ¦ 1.0m*1.0m4.5 lb ¦ 2 kgPlug-in Bluetooth or Zigbee


*The Maximum Shade Size measures are provided as guidelines and should only be used for evaluating your specific application.

**The Weight Capacity of a motor is calculated under optimal circumstances. Actual results may vary.




TypeRated Torque(N.m)Rated Speed(rpm)Power SupplyRated Power(W)Rated Current(A)Maximum Shade Size*Weight Capacity**Smart Control
JCD28QLEU-20202.020/24/285V/2A USB Charger&Solar Panle181.684"×160" ¦ 2.1m*4.1m20 lb ¦ 9 kgMini Bridge/Hub
JCD30QLEU-20202.020/24/285V/2A USB Charger&Solar Panle181.684"×160" ¦ 2.1m*4.1m20 lb ¦ 9 kgMini Bridge/Hub
JCD28QLEU-2020-B/Z2.020/24/285V/2A USB Charger&Solar Panle181.684"×160" ¦ 2.1m*4.1m20 lb ¦ 9 kgPlug-in Bluetooth or Zigbee
JCD30QLEU-2020-B/Z2.020/24/285V/2A USB Charger&Solar Panle181.684"×160" ¦ 2.1m*4.1m20 lb ¦ 9 kgPlug-in Bluetooth or Zigbee



*The Maximum Shade Size measures are provided as guidelines and should only be used for evaluating your specific application.

**The Weight Capacity of a motor is calculated under optimal circumstances. Actual results may vary.



TypeRated Torque(N.m)Rated Speed(rpm)Power SupplyRated Power(W)Rated Current(A)Maximum Shade Size*Weight Capacity**Smart Control
JCD35QLEU-60176.015/17/205V/2A USB Charger&Solar Panle303.684"×160" ¦ 2.1m*4.1m44 lb ¦ 20 kgMini Bridge/Hub
JCD35QLEU-6017-B/Z6.015/17/205V/2A USB Charger&Solar Panle303.684"×160" ¦ 2.1m*4.1m44 lb ¦ 20 kgPlug-in Bluetooth or Zigbee


*The Maximum Shade Size measures are provided as guidelines and should only be used for evaluating your specific application.

**The Weight Capacity of a motor is calculated under optimal circumstances. Actual results may vary.
